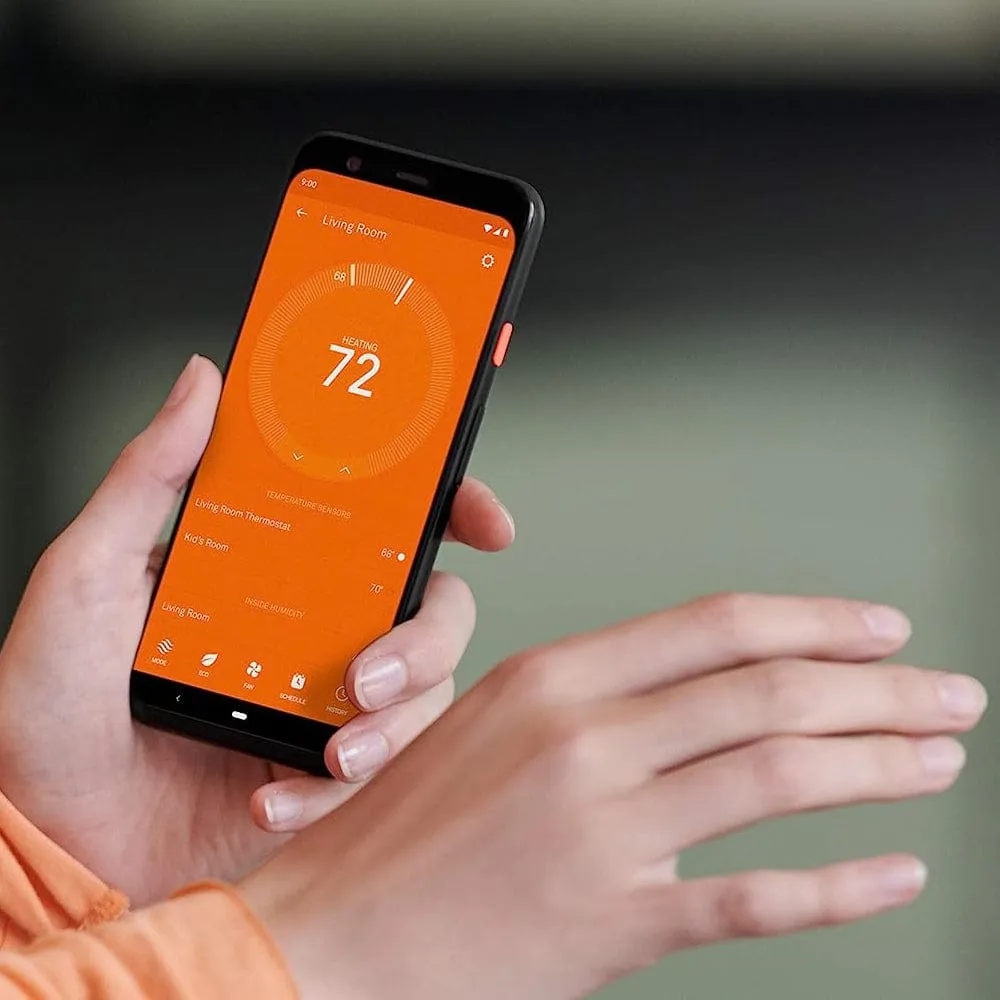

The Nest Thermostat can use a built-in sensor to know when nobody’s home, then adjust the temperature to save energy. The Google Home app can also use your phone’s location to help your thermostat adjust even faster when you leave.Your Nest Thermostat can send a reminder if your air filters need to be replaced, or an alert if it detects your furnace is acting up.

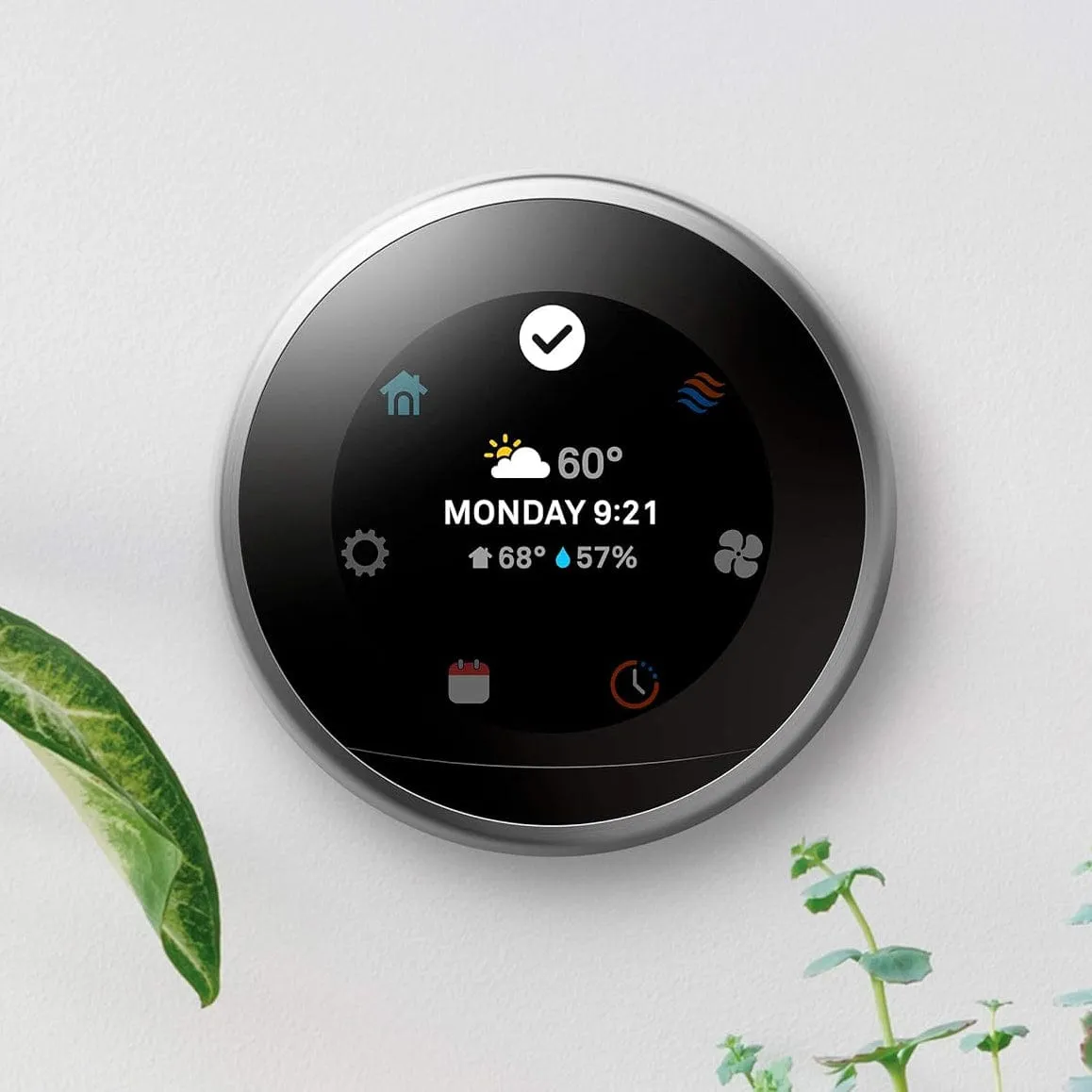

• Touch bar
  Swipe up or down to change the temperature. Tap to bring up the menu.
• Status and alerts
  Current heating or cooling mode and system alerts.

• Target temperature
  The temperature you want to reach.
• Current temperature
  The temperature in your home.
• Modes
  Change modes, like heating and cooling.
• Hold
  Keeo a specific temp for a certain amount of time.
• Fan
  Getting stuffy? Use the fan whenever you want.
• Settings
  Check your battery and network status.

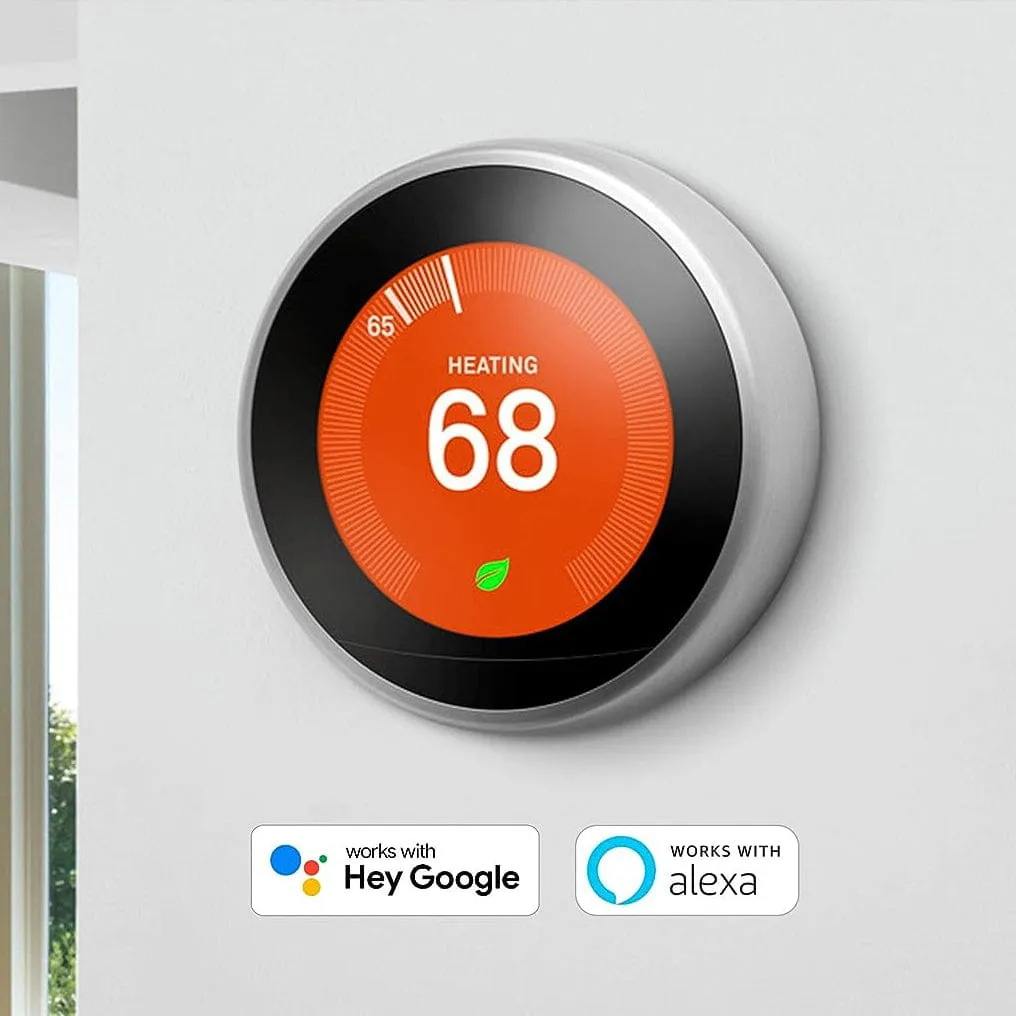

The Nest leaf appears when you change the Nest Thermostat to an energy-saving temperature.The Nest Thermostat works with the Google Assistant on your phone, or Nest speakers and displays. Just say, “Hey Google, turn up the heat.” The Nest Thermostat also works with Alexa and other smart speakers and displays.

• Display
  Mass: 7.25 oz (205.4 g)^*
  Diameter: 3.3 in (8.4 cm)
  Height: 1.06 in (2.69 cm)
• Base
  Mass: 1.35 oz (38.3 g)
  Diameter: 3.3 in (7.6 cm)
  Height: 0.42 in (1.1 cm)
• Assembled (Display Base)
  Mass: 8.6 oz (243.7 g)^*
  Diameter: 3.3 in (8.4 cm)
  Height: 1.21 in (3.08 cm)
• Trim plate size
  Width: 5.92 in (150.4 mm)
  Height: 4.35 in (110.4 mm)
• Memory
  512MB

• Sensors
• Temperature
• Humidity
• Proximity
• Motion
• Ambient light
• Magnetic (for thermostat ring position)
• Power consumption
  Less than 1 kWh/month

• Voltage requirement
  20-30V AC

• Average bandwidth approximately
  50 MB/week upload and 50 MB/week download

• Certification
• UL 873, Temperature-Indicating and -Regulating Equipment
• CSA-C22.2 No. 24, Temperature-Indicating and -Regulating Equipment

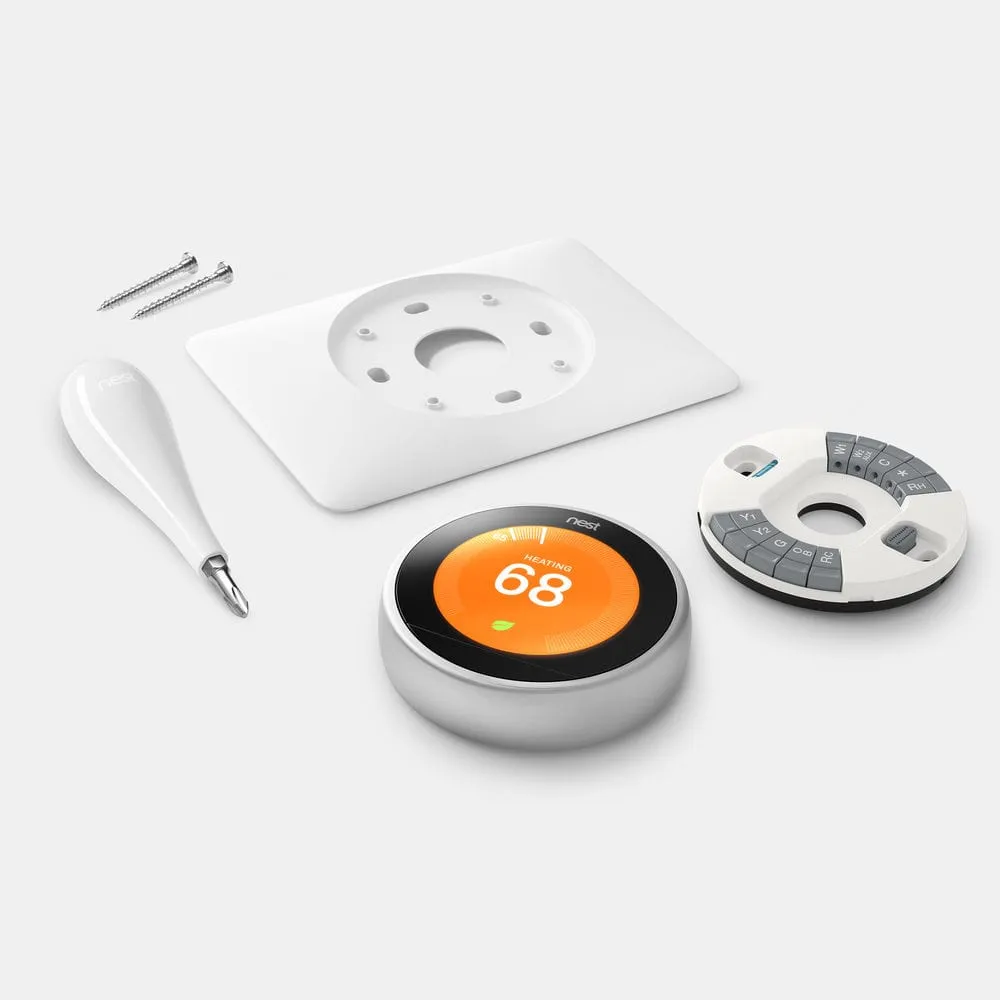

• In the box
• Nest thermostat display

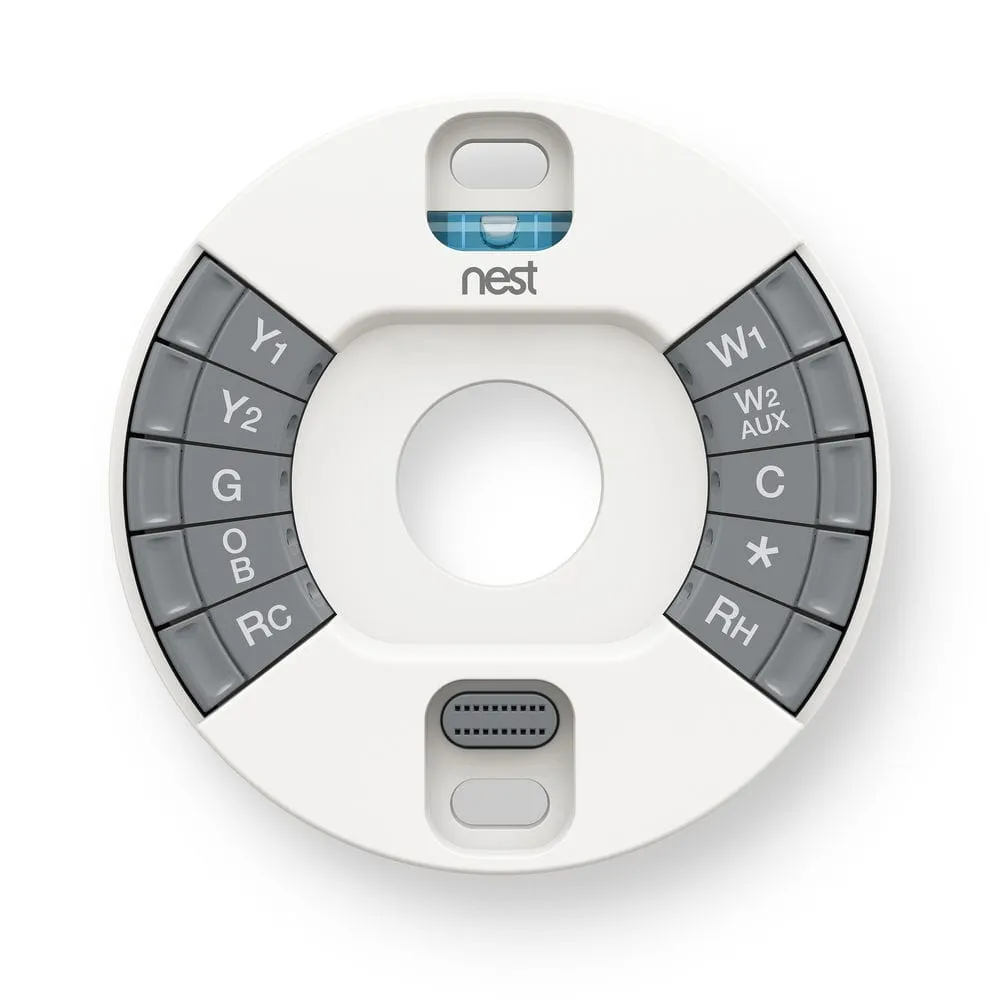

• Nest thermostat base
• Trim plate
• Steel plate

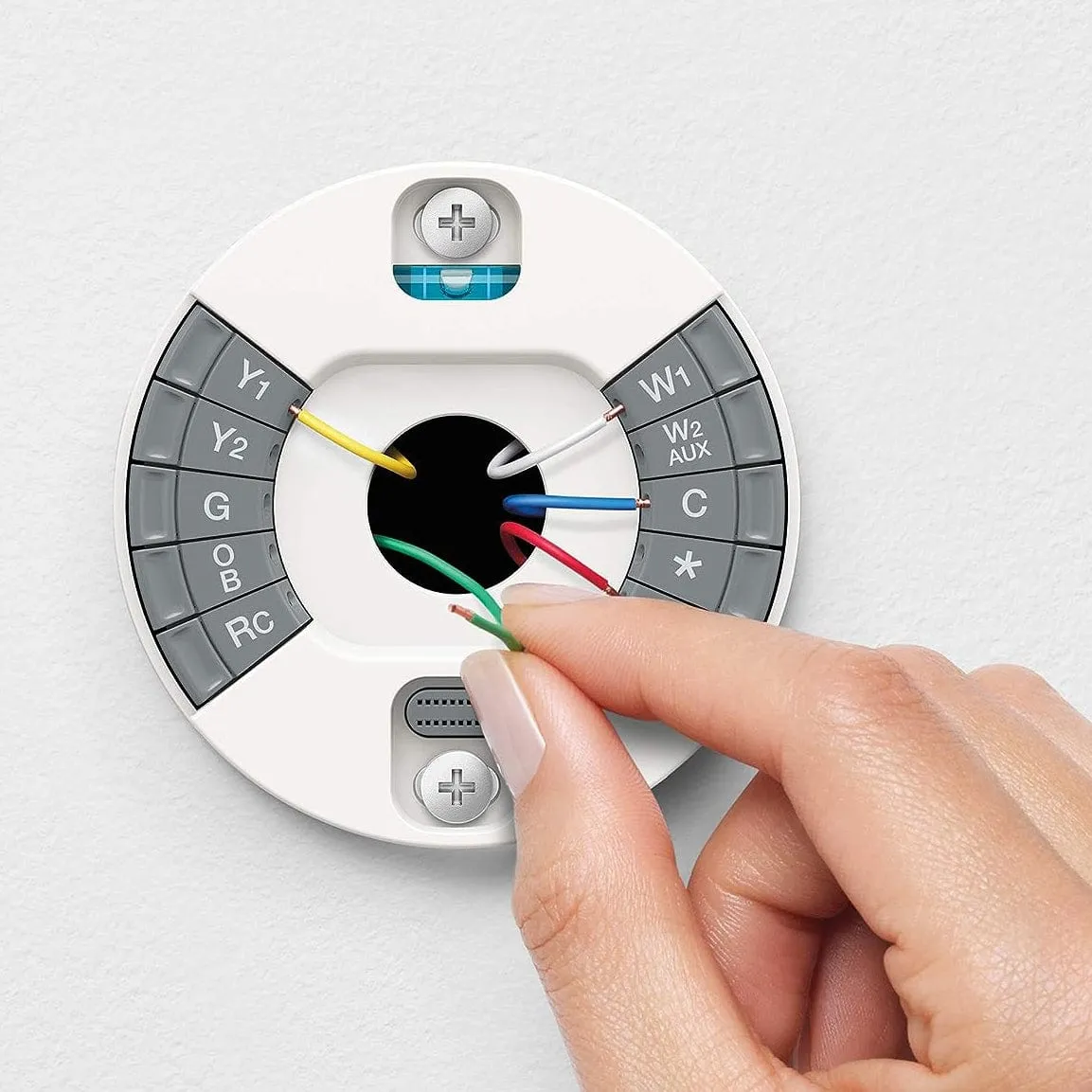

• Mounting screws and wire labels
• Nest screwdriver
• Installation Guide
• Welcome Guide

• Operating Ambient

• Temperature
  32° to 104°F (0° to 40°C)
• Humidity
  Up to 90% RH unpackaged
• Pressure
  Up to 10,000 ft altitude
• Storage Ambient

• Temperature
  -4° to 113°F (-20° to 45°C)

• Humidity
  Up to 80%RH in packaging

• Pressure
  Up to 15,000 ft altitude

• Green
• Contains no hazardous substances
• RoHS compliant
• REACH compliantEnergy Star
• CEC Title 20
• CEC Title 24 Residential
• CEC Title 24 Non-residential
• Recyclable packaging
• Learn more at

^*3rd gen Nest Learning Thermostat, Stainless Steel. Weights may vary slightly for Copper, White, and Black Nest thermostats.
